Sliding doors or swing doors for cold rooms? Which is suitable for which business?
Cold roomEvery business owner who installs doors wants to increase efficiency. Choosing the right door is key to this efficiency. Maintaining thermal insulation and saving energy depends on the quality of the door.cold storageAllowing entry and exit without disrupting the air balance inside reduces operating costs. Doors are not just points of passage; they are also...cold room equipmentThey act as shields, easing the burden on the customer. Choosing the wrong door can lead to both product spoilage and higher bills.
Cold Room Swing Door Models and Applications
Also known as a hinged doorcold room swing doorThese options are frequently seen in small to medium-sized spaces. These doors work just like the interior doors in our homes. They rotate around a hinge and open by pulling or pushing.
Advantages of swing doors
These types of doors offer a great advantage in confined spaces.Cold room sandwich panelThey are easily mounted. These models are very practical if space is limited and large pallets will not fit. The locking mechanisms are quite robust. Thanks to the safety handles that can be opened from the inside, they fully meet occupational safety standards. The seals on the door edges promise high airtightness to prevent heat loss.
Which businesses should choose swing doors?
Restaurant kitchens, small butcher shops, and laboratories particularly prefer these models. Swing doors simplify operations in places with low staff traffic and where products are often transported by handcarts. Because the door leaf opens outwards, it doesn't reduce the storage space inside. However, it's essential that there is enough free space outside to cover the door's opening distance.

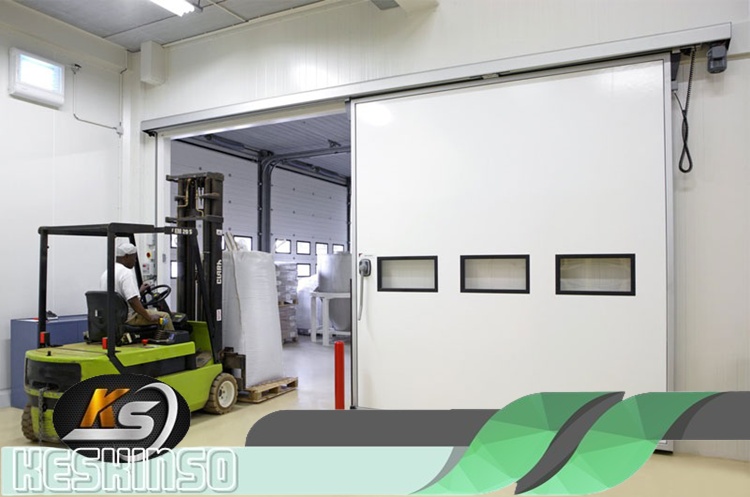

Technical Details of Cold Room Sliding Door Solutions
Cold room sliding doorThey are the preferred choice for businesses seeking wide passageways. They move by sliding sideways on a rail. This mode of movement speeds up the transportation of large-volume products.cold storageThis model offers the easiest loading and unloading among its door options.
Functional features of sliding doors
These doors do not take up space outside when opened. Thanks to the rail system, the door leaf moves along the wall. Sliding systems play a vital role if vehicles such as forklifts or pallet trucks are to pass through. Despite their large size, they slide easily thanks to special bearing systems. They can be integrated with automatic opening and closing systems. Sensor-equipped models allow personnel to pass through without touching the door. This minimizes heat loss.
Sliding Door Efficiency in Large-Scale Facilities
Logistics centers, large fruit and vegetable warehouses, and frozen food factories prefer these doors. Wing thicknesscold room sandwich panelThe thickness is selected to match the desired shape. This maintains the temperature difference between the outside and inside environments. In frozen storage rooms, heating elements around the door leaf prevent freezing. This ensures the door always moves smoothly.
Door Selection Criteria in Cold Storage Design
When choosing a door, it's a mistake to only look at the price. Business traffic, the type of goods being transported, and the room's desired temperature are the determining factors.Cold room equipmentEach time a door is opened, it expends more energy to regulate the heat. Therefore, it's important to focus on a model that opens and closes the fastest and offers the best insulation.
Passage width and vehicle traffic
If only people are entering and exiting the warehouse, a hinged door is sufficient. However, if pallets need to be brought in, a sliding door is essential. Sliding models have a much wider passageway. This width increases the speed of operations. It is time-consuming for personnel to try to open the door while carrying boxes. Automating sliding doors eliminates this loss.
Area management and layout plan
In places where there isn't enough space outside, a swing door can hit other equipment when opening. A sliding door, on the other hand, saves space because it moves parallel to the wall. The door will be installed...cold room sandwich panelThere needs to be enough space next to the wall to accommodate the door leaf. This planning must be done correctly before installation.
Keskinso Cooling Systems offers professional solutions.
Based in Sancaktepe, Istanbul. Kesknso Cooling Systems industrial refrigeration with an environmentally conscious production approach.cold storageIt is a reliable solution partner offering innovative solutions to your needs. Advanced technology split system.cold room equipmenthighly insulated modular modelscold roomWith its wide range of products extending from panels to doors, Keskin So builds long-lasting systems that increase the energy efficiency of your business. Offering a 2-year product warranty against manufacturing and installation, professional periodic maintenance services, and 24/7 uninterrupted technical support after sales, Keskin So stands by you at every stage of your project, ensuring your products are stored in the freshest and safest way.
Insulation and Material Quality in Cold Room Doors
It's not enough for a door to just close. The body of the door is also important.cold room sandwich panelThey should have a high-density polyurethane filling. Insulation material with a density of 40-42 kg/m³ completely prevents heat transfer. Door surfaces are generally made of polyester-painted sheet metal or stainless steel. In food businesses where hygiene is paramount, stainless steel surfaces facilitate cleaning.
The effect of gasket and seal structure
If the door leaks air when it's closedcold room equipmentIt operates continuously. This shortens the compressor's lifespan. Door seals should be flexible and durable. Double-row seal systems are generally preferred for swing doors. Sliding doors, on the other hand, have special rail systems that push the door leaf down and inward when it is fully closed. This pressure maximizes the sealing effect.
Door details in frozen storage and shock freezing rooms.
In rooms operating at sub-zero temperatures, door seals freezing over is a major problem. The frozen seal sticks and tears when the door is opened. To prevent this, a heating element is installed in the door frame. This heating cable prevents the seal from freezing.cold storageIf the temperature is below zero degrees, this technical detail should never be overlooked.
Important Considerations During Door Installation
No matter which door you choose, you won't get satisfactory results if the installation is faulty. The door frame must be level. A crooked frame will prevent the seals from pressing properly. In sliding doors, the straightness of the rail is the main rule for quiet and smooth operation.
Threshold type and ground compatibility
Swing doors are available with or without thresholds. If pallet trucks will be entering the warehouse floor, threshold-free models should be preferred. In models with thresholds, the seal at the bottom touches the ground, completing the thermal insulation. Threshold doors generally perform better in rooms with insulated floors. However, the volume of transport within the facility directly affects this decision.
Wing thickness selection
Door thickness varies depending on the storage temperature. In positive temperature storage rooms, a thickness of 68-80 mm is sufficient. In negative temperature frozen product storage rooms, doors with a thickness of 100-120 mm are selected.Cold room sandwich panelThe balance between the thickness of the wall and the door thickness prevents the formation of a thermal bridge.
Maintenance and Repair of Cold Storage Doors
Doors are the most frequently moved and worn parts of a facility. Doors that are not regularly maintained will sag over time. Lubricating the hinges and cleaning the rails will extend the life of the doors. Keeping the seals clean is important for maintaining a tight seal.
Signs of malfunction and early intervention.
If a door is difficult to close or the lock isn't working, immediate action should be taken. Leaving a door open leads to increased humidity inside. Humidity, in turn...cold room equipmentThis causes icing in the evaporators. This chain reaction of problems can lead to the entire system shutting down. Periodic inspections prevent these types of major malfunctions.
Which Choice Increases Business Efficiency?
To give a definitive answer, we need to look at the daily pace of your business. For boutique spaces with a small number of staff...cold room swing doorIt is both economical and sufficient. For large facilities with high volumes of shipments and constant back-and-forth movement of pallets, however...cold room sliding doorIt is an indispensable investment.
Choosing the right door can lead to up to a 20% reduction in energy bills. It also helps keep produce fresh for longer. Considering these long-term savings when thinking about investment costs is a smart move.cold storageIn its installation, the harmonious functioning of each component is an indicator of the system's success.
Investment cost and payback period
Sliding doors have a higher initial purchase cost than swing doors. However, the speed and energy savings they provide in heavy traffic quickly offset this difference. Swing doors, on the other hand, offer ease of installation in low-budget projects. Choosing the most suitable model according to your business's growth plans will pay off in the long run.
Cold roomYou can get support from our expert teams to determine the most efficient door and panel solutions for your projects. We install systems that reduce energy loss to zero with customized project planning for your business. We offer the most suitable solutions for your needs.cold storageContact us immediately for installation.
